Calibration
Reusable print-to-cut calibration profiles and physical test evidence
Existing puzzle exports are unchanged. Future final exports must explicitly opt in to confirmed profiles and store frozen correction snapshots.
Cut Spacing Ladder
Hidden proof for checking tighter cut spacing. Production spacing is unchanged.
| Target | Actual cut spacing | Bleed gap |
|---|---|---|
| 2.95 mm | 2.954 mm | 1.153 mm |
| 2.75 mm | 2.753 mm | 0.953 mm |
| 2.50 mm | 2.503 mm | 0.703 mm |
| 2.25 mm | 2.254 mm | 0.453 mm |
| 2.00 mm | 2.004 mm | 0.203 mm |
| 1.80 mm | 1.804 mm | 0.006 mm |
Active Export Profile
Saved machine, printer, registration, and material-fit state for final puzzle exports.
Owner Alpha - S1 40W / ET-8500 / paper on 1/8 MDF
Export profile
calsetup_20260517_182621_c54446de4941- XY correction
- X 0.70 mm, Y -0.10 mm
- Material fit
- K0.20 full kerf; 0.10 mm outward offset
- Session
calsess_20260517_054323_4720a9046d65- Export rule
- New exports must snapshot this setup; existing exports are unchanged.
Profile References
- Registration
cal_20260516_223213_982682889c87- Registration hash
592fa32a7c03dff0- Material
matcal_20260517_061755_7d7370129bb0- Material hash
99f1a76f25c195fb
Calibration Session
Progressive calibration lives here. Jobs should stay focused on final print and cut outputs.
Preflight
completed
Printer, machine, paper, and portrait letter workflow selected.
Scale
completed
Scale artifacts measured accurately at 100 percent print/import sizing.
XY Registration
completed
XY Color-Vernier V2 selected X +0.70 mm and Y -0.10 mm.
Kerf / Fit
accepted
K0.20 confirmed by compact confirmation coupon.
Confirmation
accepted
Compact confirmation coupon passed; material-fit profile accepted for owner-alpha exports.
Current Step
Create a final puzzle export with this active setup
Calibration is ready for owner-alpha jobs. X 0.70 mm, Y -0.10 mm, and K0.20 are confirmed for this material stack.
- Accepted
- 2026-05-17T17:44:26Z
- Material profile
matcal_20260517_061755_7d7370129bb0
Material Fit Profile
- Profile
matcal_20260517_061755_7d7370129bb0- Status
- accepted_owner_alpha
- Full kerf
- 0.20 mm
- Offset
- 0.10 mm
- Exports
- Enabled
Current Proof: 2x2 Jigsaw Coupon
Private print/SVG coupon using provisional X +0.70 / Y +0.00 compensation on red cut paths only.
- Compensation
- X 0.70 mm, Y 0.00 mm
- Kerf applied
- 0.00 mm
- Registration frame
- 162.4 x 202.5 mm
- Validation
- 72 / 72 checks passed
Current Proof: Repeat V2 2x2 Jigsaw Coupon
Private confirmation coupon using candidate X +0.70 / Y -0.10 compensation on red cut paths only.
- Compensation
- X 0.70 mm, Y -0.10 mm
- Source run
calrun_20260516_213903_31b818b27f9a- Validation
- 72 / 72 checks passed
Historical Proof: Repeat V1 2x2 Jigsaw Coupon
Earlier confirmation coupon using candidate X +0.30 / Y +0.10. V2 is the current candidate when available.
- Compensation
- X 0.30 mm, Y 0.10 mm
- Kerf applied
- 0.00 mm
- Registration frame
- 162.4 x 202.5 mm
- Validation
- 72 / 72 checks passed

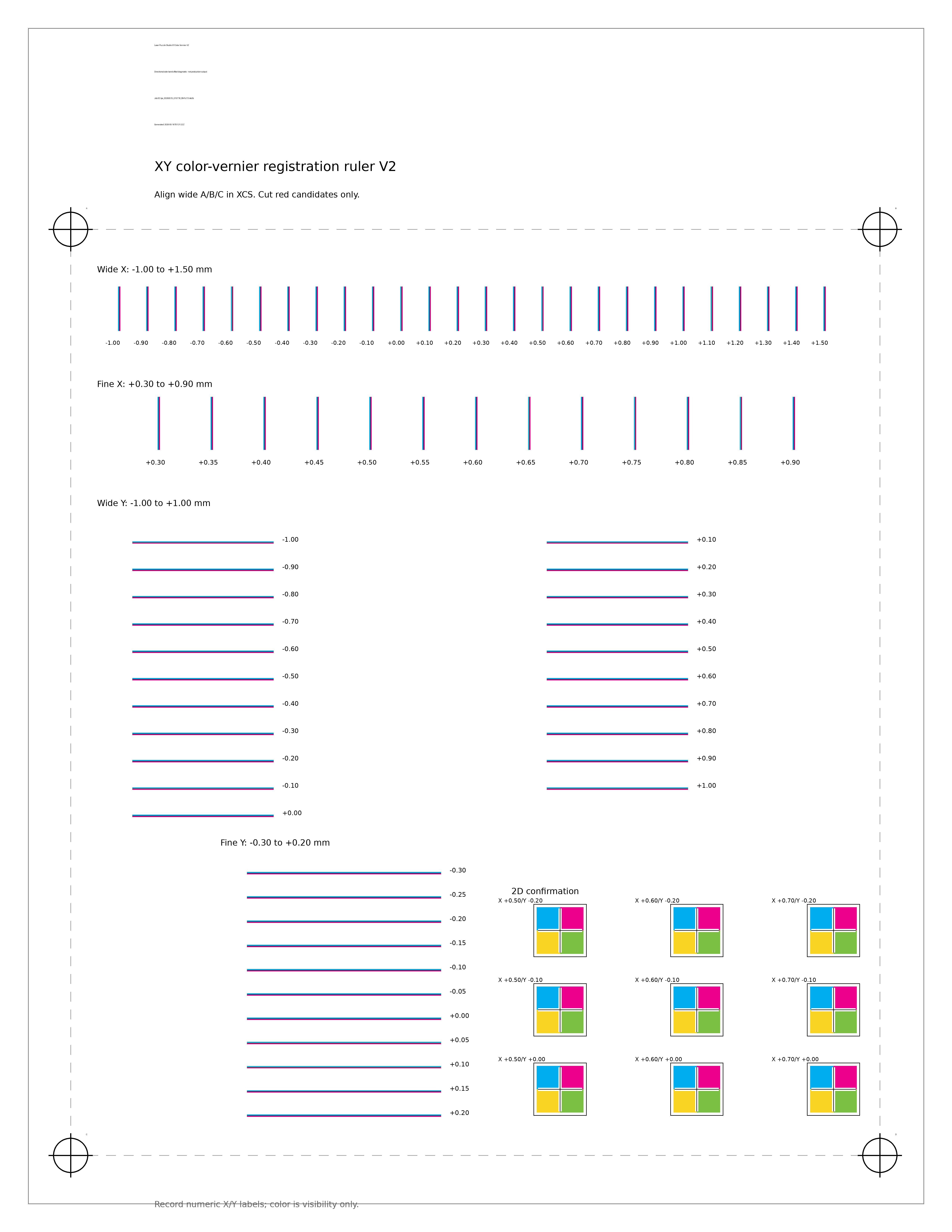

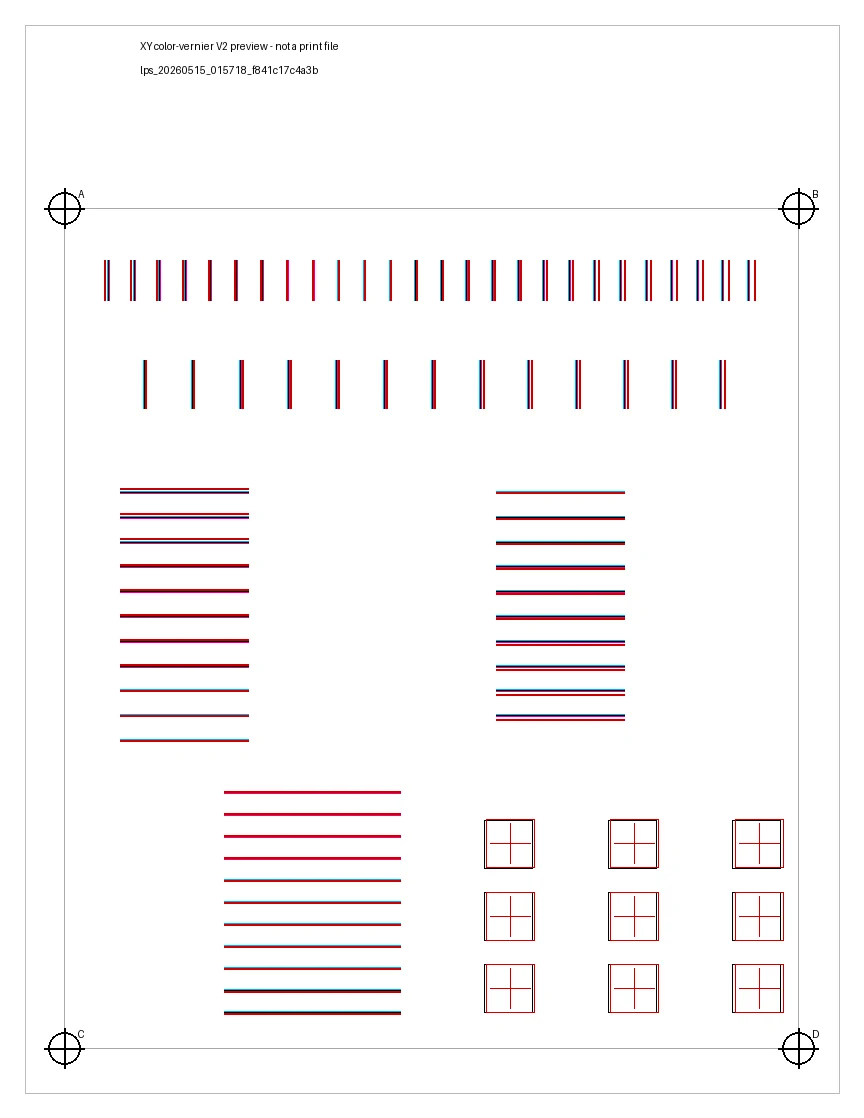

Current Test: XY Color-Vernier Ruler V2
This sheet keeps the V1 numeric ranges, widens the A/B/C/D frame, and uses print-only cyan/black/magenta side bands to show offset direction.
- Center guess
- X 0.60 mm, Y -0.10 mm
- Side-band reference
- 0.20 / 0.10 / 0.20 mm
- Frame
- 183.5 x 210.0 mm
- Range profile
- wide color vernier plus fine sideband v2
- Candidates
- 39 X / 32 Y
- 2D confirmation
- 9 cells
- Validation
- 44 / 44 checks passed
Advanced Legacy Job-Backed Tools
Preserved for existing evidence and artifact inspection. New calibration progress should be saved through the session above.
| # | Step | Target | Status | Action |
|---|---|---|---|---|
| 1 |
Choose calibration job
Selected job: lps_20260515_015718_f841c17c4a3b.
|
Use one source job as the thread for all calibration artifacts. | ready | |
| 2 |
Print and SVG scale
Print the calibration PDF at actual size and import the SVG scale square into XCS.
|
Confirm printer output and XCS SVG import are actual size. | ready | |
| 3 |
Record scale measurements
Measurement gate allows registration coupon generation.
|
Save caliper measurements for print scale and SVG import scale. | ready | |
| 4 |
Full-page registration coupon
Artifact is generated and available.
|
Check full-page print-to-cut alignment and XCS camera behavior. | ready | |
| 5 |
Local registration coupon
Artifact is generated and available.
|
Check print-to-cut behavior near the local cut target. | ready | |
| 6 |
XY ladder
Artifact is generated and available.
|
Use a visual line ladder to choose initial X/Y correction. | ready | |
| 7 |
XY coarse grid baseline
Artifact is generated and available.
|
Preserved wide-range check. Use the combo grid for the current wide-plus-fine test. | ready | |
| 8 |
XY combo grid: wide + fine
Artifact is generated and available.
|
Completed wide-plus-fine sheet. Use the focused repeat for the current large-target test. | ready | |
| 9 |
XY focused repeat: large targets
Artifact is generated and available.
|
Preserved black-target sheet. Use the color repeat for the current easier-read target. | ready | |
| 10 |
XY color repeat: easier visual read
Artifact is generated and available.
|
Preserved color-repeat sheet. Use the color-vernier ruler for the current wide-plus-fine read. | ready | |
| 11 |
XY color-vernier ruler V1
Artifact is generated and available.
|
Preserved wide/fine color-vernier sheet. Use V2 for the current side-band/corner-frame test. | ready | |
| 12 |
XY color-vernier V2 side-band
Artifact is generated and available.
|
Current recommended sheet: wider corner-frame A/B/C/D and cyan/black/magenta side-band references. | ready | |
| 13 |
Record physical XY result
A color-vernier V2 run exists for this job. It is still evidence only.
|
Save the closest X/Y labels from the physical V2 side-band cut. | ready |
Scale Measurements
Record print scale and SVG import scale for the selected job.
- Gate
- passed
- Registration coupon allowed
- yes
- Print X
- 100.2 mm
- Print Y
- 100.2 mm
- SVG width
- 50 mm
- SVG height
- 50 mm
- Print deltas
- X 0.2 mm, Y 0.2 mm
Record Physical Run
Save the selected X/Y labels from a physical calibration test. This does not create or activate a profile.
Active Profile
owner_alpha_confirmed- Profile
- xTool S1 40W / Epson ET-8500 / glossy vinyl on birch / X +0.70 Y -0.10
- X correction
- 0.7 mm
- Y correction
- -0.1 mm
- Runs
- 1
- Accepted
- yes
Storage
Ready- root
-
Exists
var/calibration - runs
-
Exists
var/calibration/runs - profiles
-
Exists
var/calibration/profiles - sessions
-
Exists
var/calibration/sessions - setups
-
Exists
var/calibration/setups - artifacts
-
Exists
var/calibration/artifacts - active profile
-
Exists
var/calibration/active-profile.json - active session
-
Exists
var/calibration/active-session.json - active setup
-
Exists
var/calibration/active-setup.json - index
-
Missing
var/calibration/index.json
Correction Policy
- Sign convention
positive_x_moves_cut_geometry_right; positive_y_moves_cut_geometry_down- Print artwork
- unchanged
- Cut geometry
- XY profile plus K0.20 kerf offset
- Export gate
- active export profile saved
Calibration Runs
6| Run | Artifact | Correction | Validation |
|---|---|---|---|
calrun_20260517_174426_332e0b236bf1
2026-05-17T17:44:26Z
|
X , Y | Valid | |
calrun_20260517_061755_d7d59a77ef45
2026-05-17T06:17:55Z
|
X , Y | Valid | |
calrun_20260516_213903_31b818b27f9a
2026-05-16T21:39:03Z
|
registration_xy_color_vernier_v2 | X 0.7, Y -0.1 | Valid |
calrun_20260516_023422_40b6b36d4cdd
2026-05-16T02:34:22Z
|
registration_xy_color_vernier_v2 | X 0.7, Y 0 | Valid |
calrun_20260515_203731_c7fa3e23a645
2026-05-15T20:37:31Z
|
registration_xy_combo_grid_v1 | X 0.2, Y 0 | Valid |
calrun_20260515_190132_018eb81c534a
2026-05-15T19:01:32Z
|
registration_xy_ladder_v1 | X 0.4, Y 0 | Valid |
Saved Profiles
1| Profile | State | Correction | Validation |
|---|---|---|---|
|
xTool S1 40W / Epson ET-8500 / glossy vinyl on birch / X +0.70 Y -0.10
cal_20260516_223213_982682889c87
|
owner_alpha_confirmed | X 0.7, Y -0.1 | Valid |
Saved Export Profiles
These are the reusable final-output profiles. New puzzle exports snapshot one of these profiles.
| Export Profile | State | XY | Kerf | Use |
|---|---|---|---|---|
|
Owner Alpha - S1 40W / ET-8500 / paper on 1/8 MDF
calsetup_20260517_182621_c54446de4941
|
accepted owner alpha | X 0.70, Y -0.10 | K0.20; 0.10 mm outward | active |
Deferred Production Gates
| # | Step | Target | Status | Action |
|---|---|---|---|---|
| 1 | Bare birch kerf coupon | Measure cut width on 1/8 inch birch plywood | Deferred | |
| 2 | Adhesive stack kerf coupon | Measure cut width through sticker paper plus wood | Deferred | |
| 3 | 2 x 2 puzzle coupon | Check fit, tab comfort, and visible edge gaps | Blocked | |
| 4 | First 5 x 7 production puzzle | Run after coupons pass | Blocked |
