Puzzle Plan Review

Review the selected puzzle and continue when it looks right.

Back to Projects

Puzzle plan

Preview the selected puzzle and continue when it looks right.

Planning preview ready

Source image: IMG_8769.jpg
Finished puzzle: 8 x 10 in
Piece option: 35 pieces
Piece fit: Standard
Expected pieces: 35
Planned pieces: 35
Sheets needed: 3
Plan result: Multi-sheet preview ready
Final files: Preview saved

Plan ready. Review the preview, then continue with final files when they are available for this puzzle.

Final files

Print sheet and laser alignment SVG for this puzzle.

Preview saved

Print and laser downloads are not generated for this size yet.

Technical details

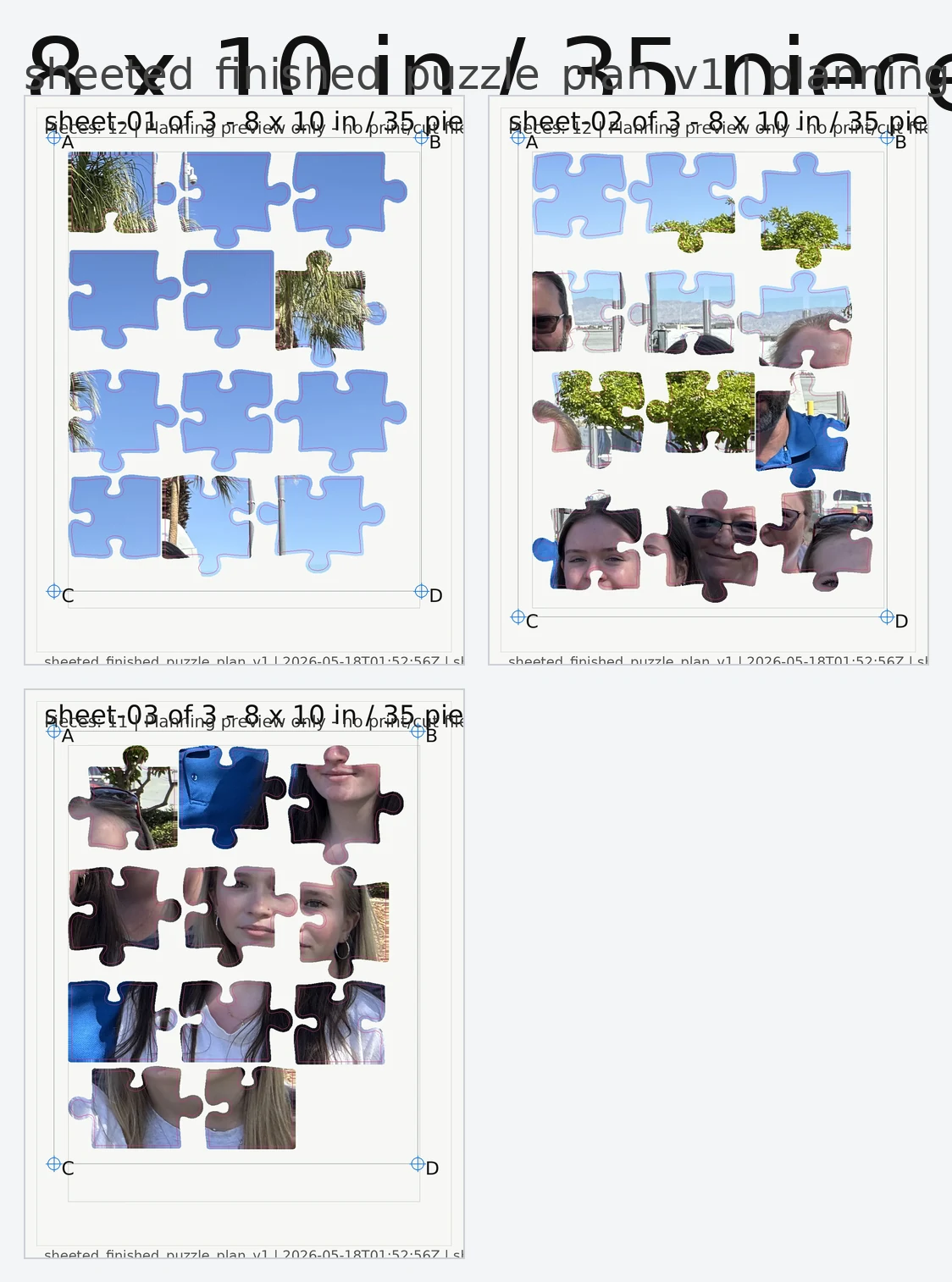

Sheeted finished-puzzle plan ready

Planning JSON and private WebP previews are available. Final print PDFs, alignment SVGs, cut SVGs, ZIP packets, Redis jobs, public downloads, and calibration changes remain deferred.

Source Image

sheeted finished puzzle plan ready

Job ID: lps_20260515_015718_f841c17c4a3b
Original filename: IMG_8769.jpg
Stored path: uploads/lps_20260515_015718_f841c17c4a3b/source.jpg
Image type: image/jpeg
Dimensions: 3300 x 2400 px
File size: 7.46 MB
SHA-256: 58a23660d7ebe1e4bfa5e620883b740059563f6bd69a7123e29aace3fca1539c
Created: 2026-05-15T01:57:18Z

Normalized Source

Stored path: jobs/lps_20260515_015718_f841c17c4a3b/normalized/source.png
Dimensions: 3300 x 2400 px
Mode: RGB
Alpha preserved: false
Orientation applied: false
Preview size: 1400 x 1018 px

Settings Snapshot

machine preset	xtool_s1_40w
printer preset	epson_et_8500
page preset	us_letter
puzzle size	8x10_in
columns	4
rows	5
image fit	crop_to_fill
border type	straight
bleed mm	1.5
piece spacing mm	4
kerf estimate mm	0.16
target clearance mm	0.04
registration marks	true
cut guides on print	false
seed	1001

Source Preview

This is the normalized source preview only. Manufacturing exports are not generated yet.

Draft Files

manifest.json Written

generation-plan.json Written

source-metadata.json Written

normalized-source.json Written

source-preview.webp Written

exports/sheeted-plan-v1/manifest.json Written

exports/sheeted-plan-v1/all-sheets-preview.webp Written

proof-2x2-pieces.json Written

proof-2x2-validation.json Written

layout-proof-2x2.webp Written

proof-2x2-tabs-pieces.json Written

proof-2x2-tabs-validation.json Written

layout-proof-2x2-tabs.webp Written

proof-2x2-tabs-bleed.json Written

proof-2x2-tabs-bleed-validation.json Written

layout-proof-2x2-tabs-bleed.webp Written

print-calibration-letter-600dpi.pdf Written

print-calibration-letter-600dpi.png Written

print-calibration-validation.json Written

svg-scale-square.svg Written

svg-scale-validation.json Written

calibration-measurements.json Written

registration-coupon-letter-600dpi.pdf Written

registration-coupon-letter-600dpi.png Written

registration-coupon.svg Written

registration-coupon-validation.json Written

registration/local-v2/registration-coupon-local-v2-letter-600dpi.pdf Written

registration/local-v2/registration-coupon-local-v2.svg Written

registration/local-v2/registration-coupon-local-v2-validation.json Written

registration/xy-ladder-v1/registration-xy-ladder-v1-letter-600dpi.pdf Written

registration/xy-ladder-v1/registration-xy-ladder-v1.svg Written

registration/xy-ladder-v1/registration-xy-ladder-v1-validation.json Written

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-letter-600dpi.pdf Written

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-alignment.svg Written

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-cut-only.svg Written

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-validation.json Written

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-letter-600dpi.pdf Written

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-alignment.svg Written

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-cut-only.svg Written

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-validation.json Written

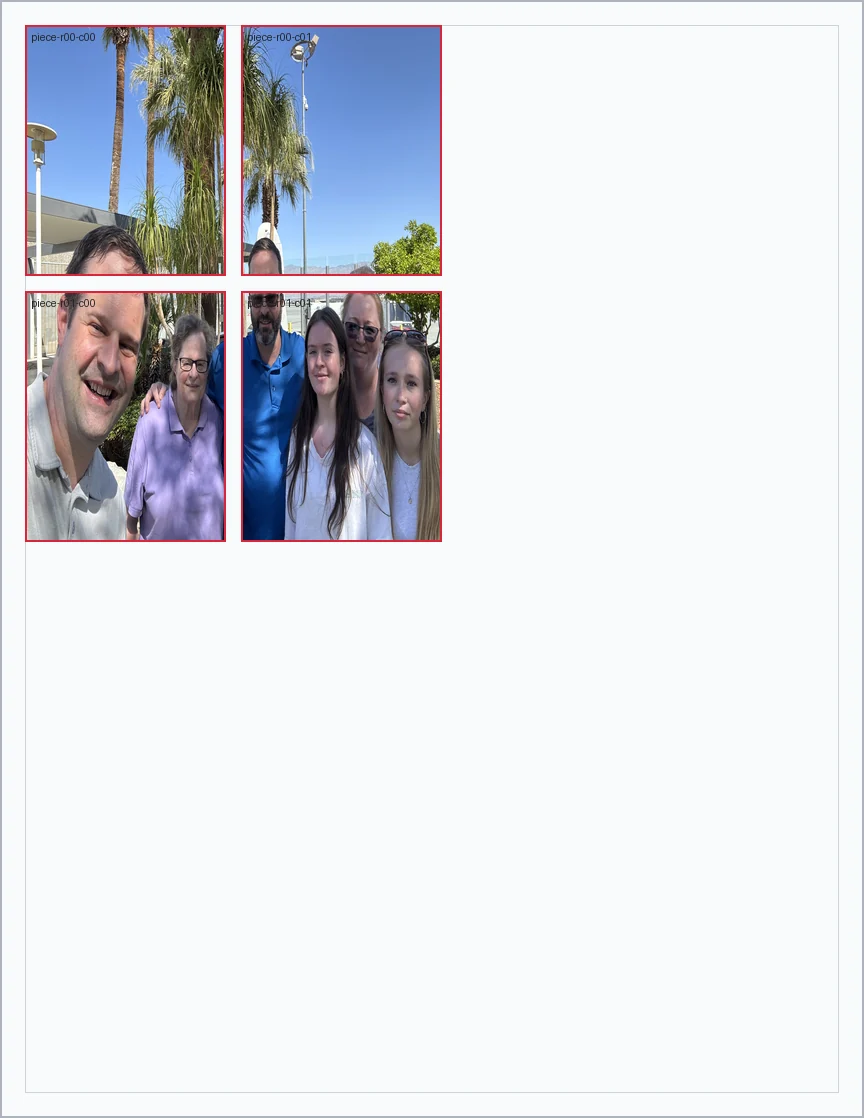

Layout Proof

Preview-only coordinate proof. This is not a print file, laser SVG, or jigsaw tab/socket proof.

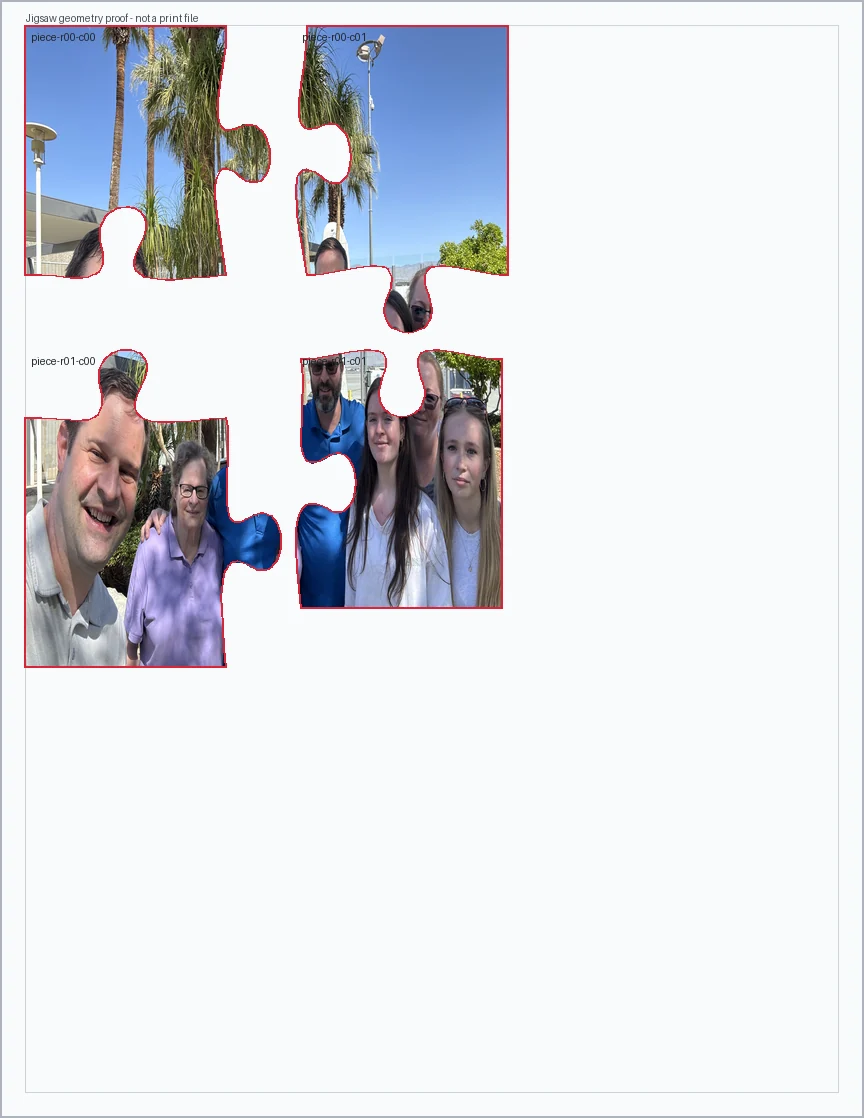

Jigsaw Proof

2x2 jigsaw tab and socket layout proof preview

Preview-only jigsaw geometry proof. This is not a print file, laser SVG, bleed proof, or manufacturing export.

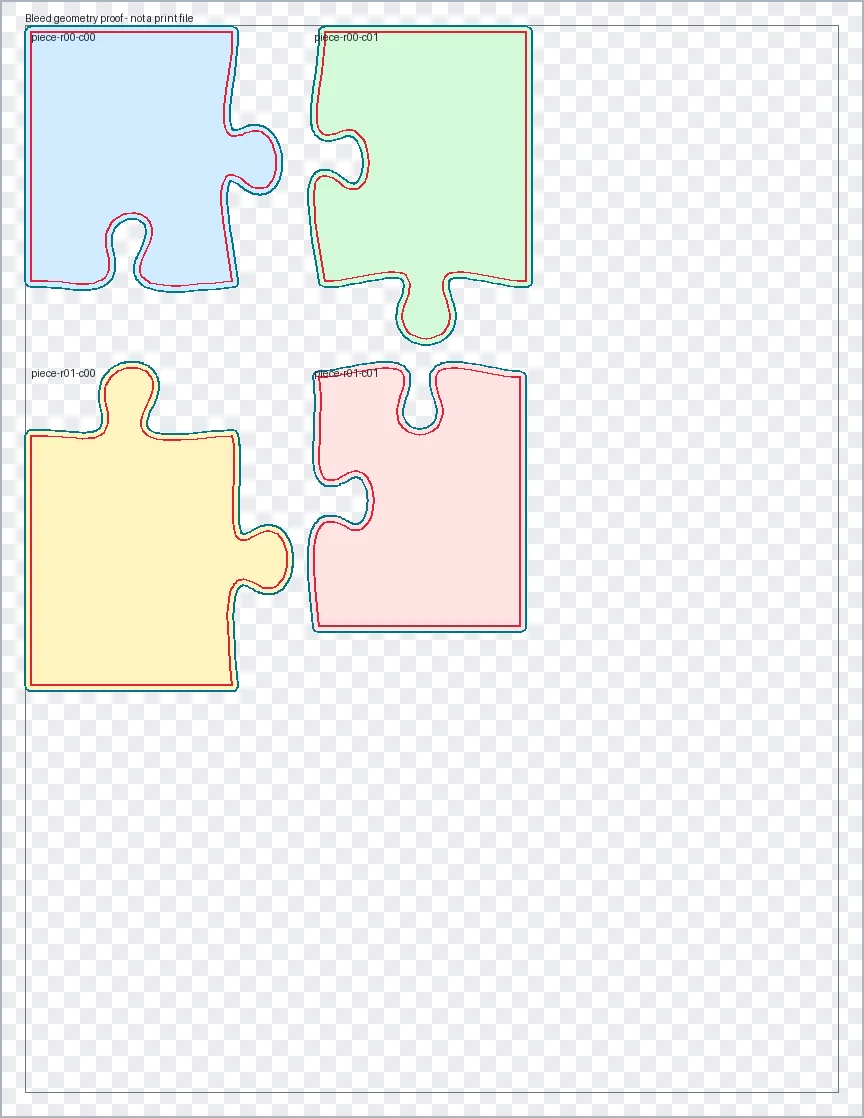

Bleed Proof

Preview-only bleed geometry proof. This is not a print file, laser SVG, artwork bleed render, or manufacturing export.

Print Calibration Proof

Download PDF Download PNG Validation JSON

PDF: jobs/lps_20260515_015718_f841c17c4a3b/calibration/print-calibration-letter-600dpi.pdf
PNG: jobs/lps_20260515_015718_f841c17c4a3b/calibration/print-calibration-letter-600dpi.png
PNG size: 5100 x 6600 px
DPI: 600
Validation: 9 / 9 checks passed
Manual status: passed

Print at 100% / actual size with fit-to-page disabled, then measure the two 100 mm scale bars. This is not a production puzzle print file.

SVG Scale Proof

Download SVG Validation JSON

SVG: jobs/lps_20260515_015718_f841c17c4a3b/calibration/svg-scale-square.svg
Expected import: 50 x 50 mm
Validation: 13 / 13 checks passed
Manual status: passed

Import this SVG into xTool Creative Space and confirm the square measures 50 mm x 50 mm. This is not a laser cut file for puzzle pieces.

Calibration Measurements

passed

Measurement gate: passed

Registration coupon allowed: yes.

Record path: jobs/lps_20260515_015718_f841c17c4a3b/calibration/calibration-measurements.json
Recorded: 2026-05-15T05:07:17Z
Print X: 100.2 mm (delta 0.2 mm)
Print Y: 100.2 mm (delta 0.2 mm)
SVG width: 50 mm (delta 0 mm)
SVG height: 50 mm (delta 0 mm)
Measurement SHA-256: f3fa804bd6e12a51bd32a818b851c2f9af44556a04703beec58afd63f549ad6f

Full-Page Registration Coupon

ready

Full-page distortion diagnostic

V1 is kept as a full-page XCS camera distortion check. Use the local V2 coupon below before jigsaw export coupon work.

Download PDF Download PNG Download SVG Validation JSON

PDF: jobs/lps_20260515_015718_f841c17c4a3b/registration/registration-coupon-letter-600dpi.pdf
PNG: jobs/lps_20260515_015718_f841c17c4a3b/registration/registration-coupon-letter-600dpi.png
SVG: jobs/lps_20260515_015718_f841c17c4a3b/registration/registration-coupon.svg
Validation: 37 / 37 checks passed
Manual status: pending owner measurement

Print the coupon at 100% / actual size, stick it to the test board, import the SVG into xTool Creative Space, align blue marks A/B/C to the printed marks, disable the blue registration references, and cut only the red test paths. If the full-page marks do not align together, proceed to the local V2 diagnostic.

Local Registration Coupon

ready

Local xTool Creative Space layer check required

Align local blue marks A/B/C, inspect D, then disable blue vectors before cutting. Cut only the red test paths.

Download PDF Download PNG Download SVG Validation JSON

PDF: jobs/lps_20260515_015718_f841c17c4a3b/registration/local-v2/registration-coupon-local-v2-letter-600dpi.pdf
PNG: jobs/lps_20260515_015718_f841c17c4a3b/registration/local-v2/registration-coupon-local-v2-letter-600dpi.png
SVG: jobs/lps_20260515_015718_f841c17c4a3b/registration/local-v2/registration-coupon-local-v2.svg
Local frame: 80 x 80 mm
Validation: 55 / 55 checks passed
Manual status: pending owner measurement

Use this after the full-page registration coupon. It places the registration marks close to the cut target so xTool Creative Space camera distortion can be tested locally before jigsaw export coupons are generated.

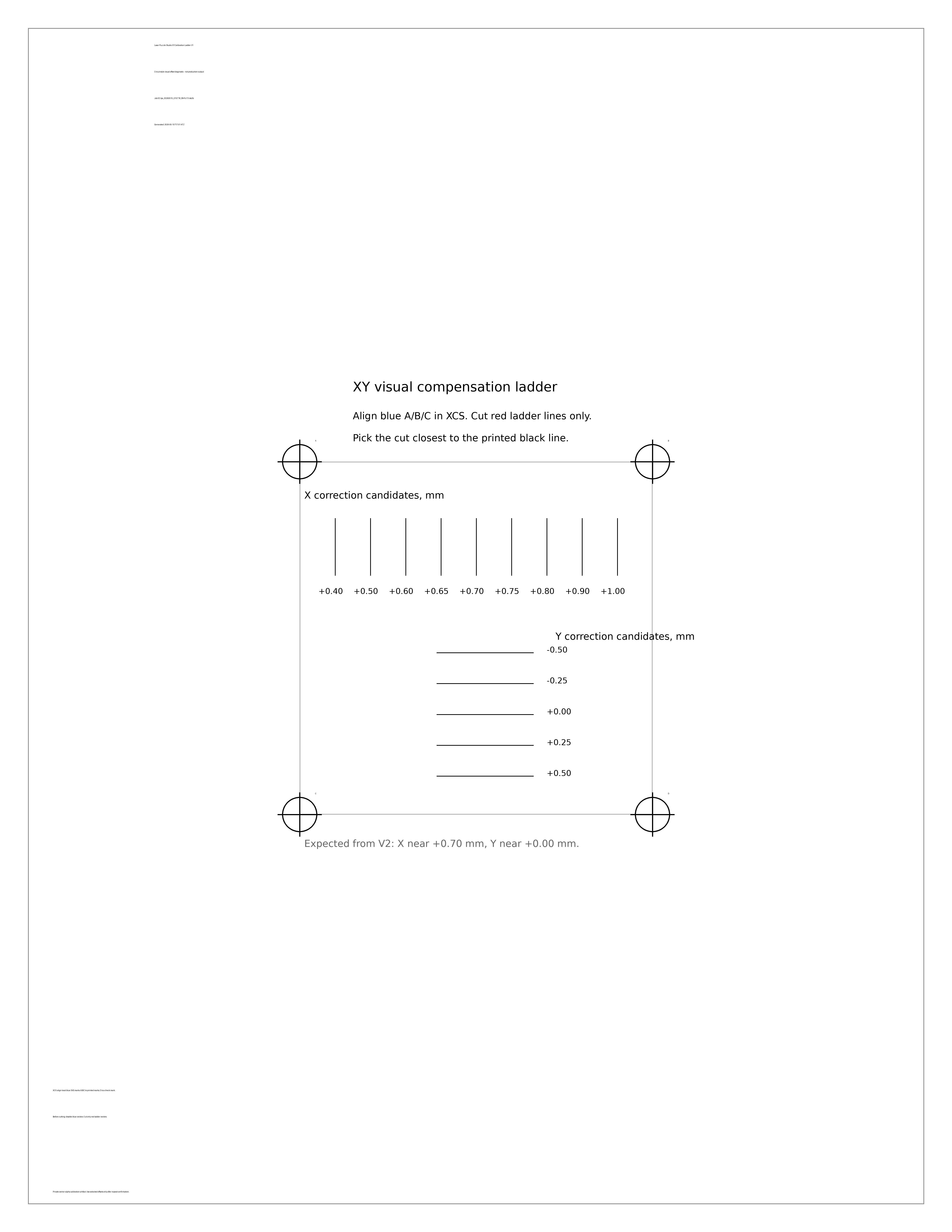

XY Calibration Ladder

ready

Visual offset selection required

Align local blue marks A/B/C, inspect D, then disable blue vectors before cutting. Cut only the red ladder vectors and choose the labels closest to the printed black reference lines.

Download PDF Download PNG Download SVG Validation JSON

PDF: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-ladder-v1/registration-xy-ladder-v1-letter-600dpi.pdf
PNG: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-ladder-v1/registration-xy-ladder-v1-letter-600dpi.png
SVG: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-ladder-v1/registration-xy-ladder-v1.svg
Candidates: 9 X / 5 Y
Expected start: X +0.70 mm, Y +0.00 mm
Validation: 88 / 88 checks passed
Manual status: pending owner selection

This is the Cricut-style visual calibration test. It does not unlock production exports by itself; the selected X/Y values need a repeat confirmation before being applied to jigsaw SVG output.

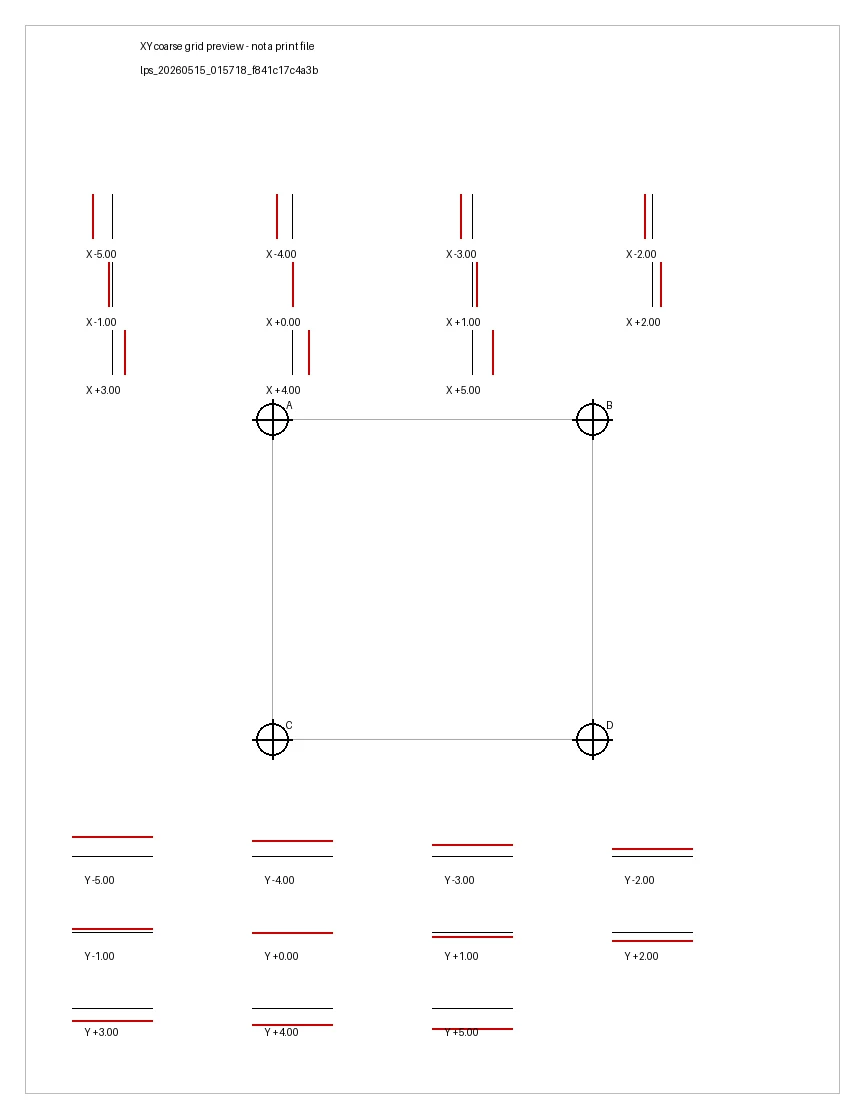

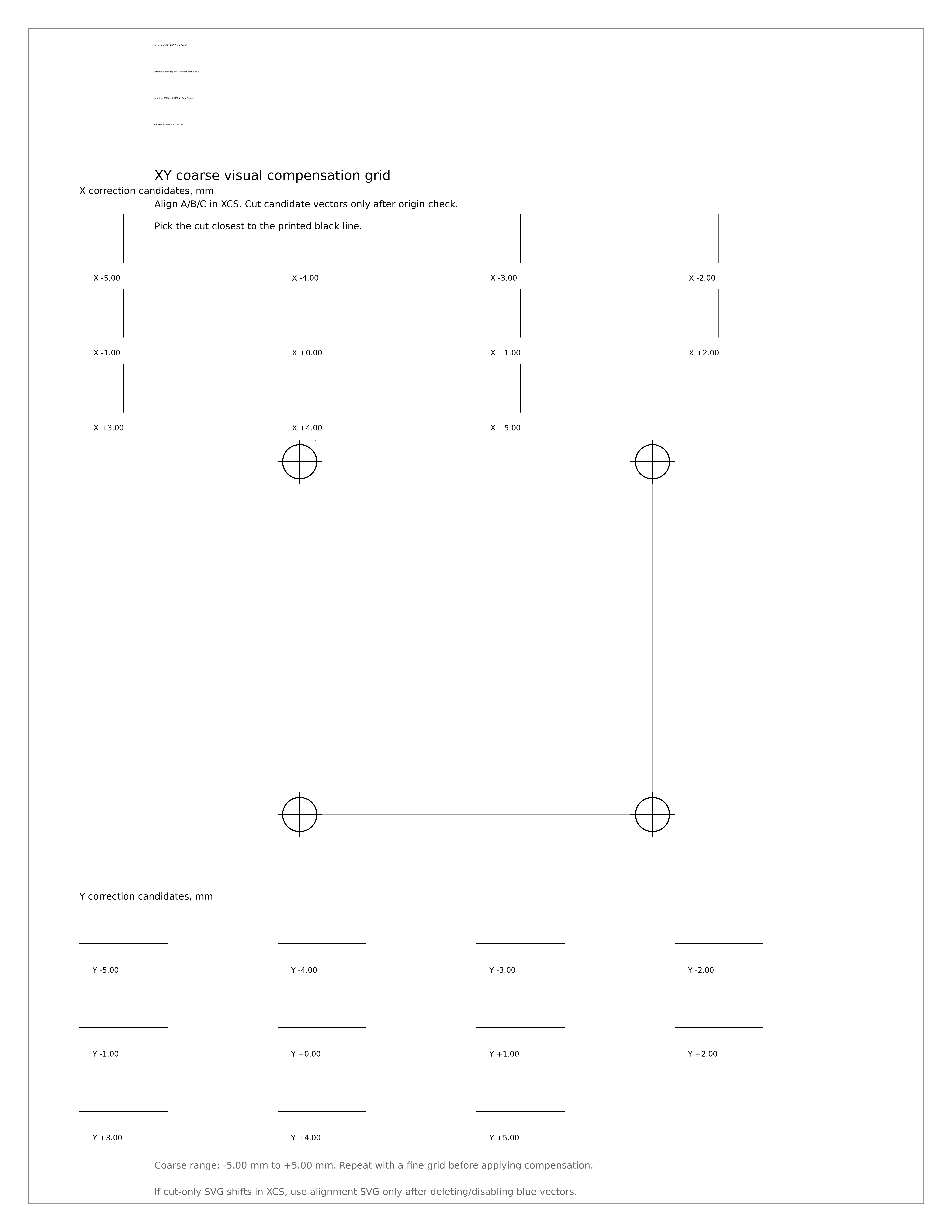

XY Coarse Grid

ready

Import-origin check required

Align with the alignment SVG first. Use the cut-only SVG only if its red candidates import at the same visual position. If it shifts, cut from the alignment SVG only after deleting or disabling every blue vector.

Download PDF Download PNG Alignment SVG Cut-Only SVG Validation JSON

PDF: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-letter-600dpi.pdf
Alignment SVG: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-alignment.svg
Cut-only SVG: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-cut-only.svg
Candidates: 11 X / 11 Y
Range: coarse wide v1
Validation: 62 / 62 checks passed
Manual status: pending owner selection

This wide coarse grid is only a selection test. Repeat with a fine grid centered on the selected X/Y values before applying compensation to jigsaw SVG output.

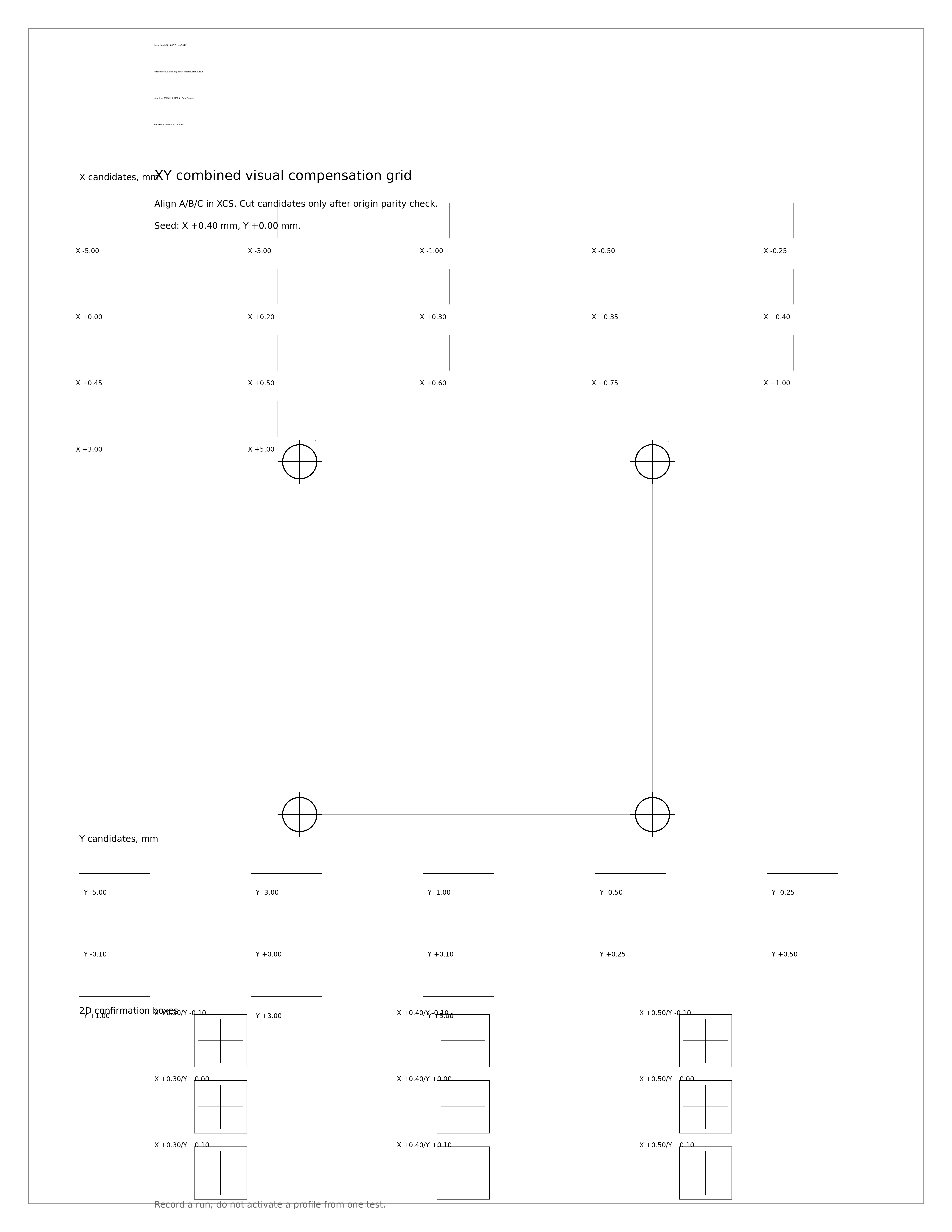

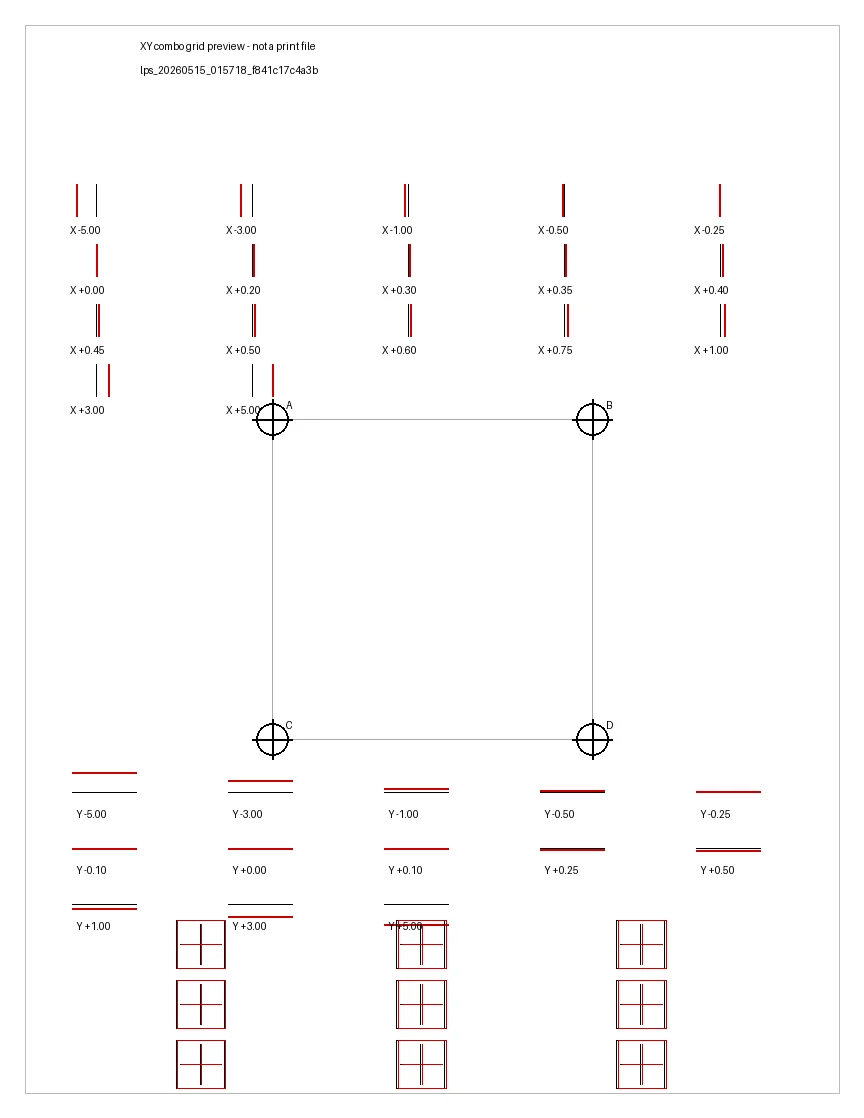

XY Combo Grid

ready

One-sheet selection test

Align with the alignment SVG first. Use the cut-only SVG only if its red candidates import at the same visual position. Record the physical result as a calibration run; this does not activate a profile.

Download PDF Download PNG Alignment SVG Cut-Only SVG Validation JSON

PDF: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-letter-600dpi.pdf
Alignment SVG: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-alignment.svg
Cut-only SVG: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-cut-only.svg
Candidates: 17 X / 13 Y
Confirmation: 9 cells
Seed: X +0.40 mm, Y +0.00 mm
Validation: 60 / 60 checks passed
Manual status: pending owner selection

This artifact combines wide sentinels, focused X/Y ladders, and a 2D confirmation matrix. It is still diagnostic evidence only.

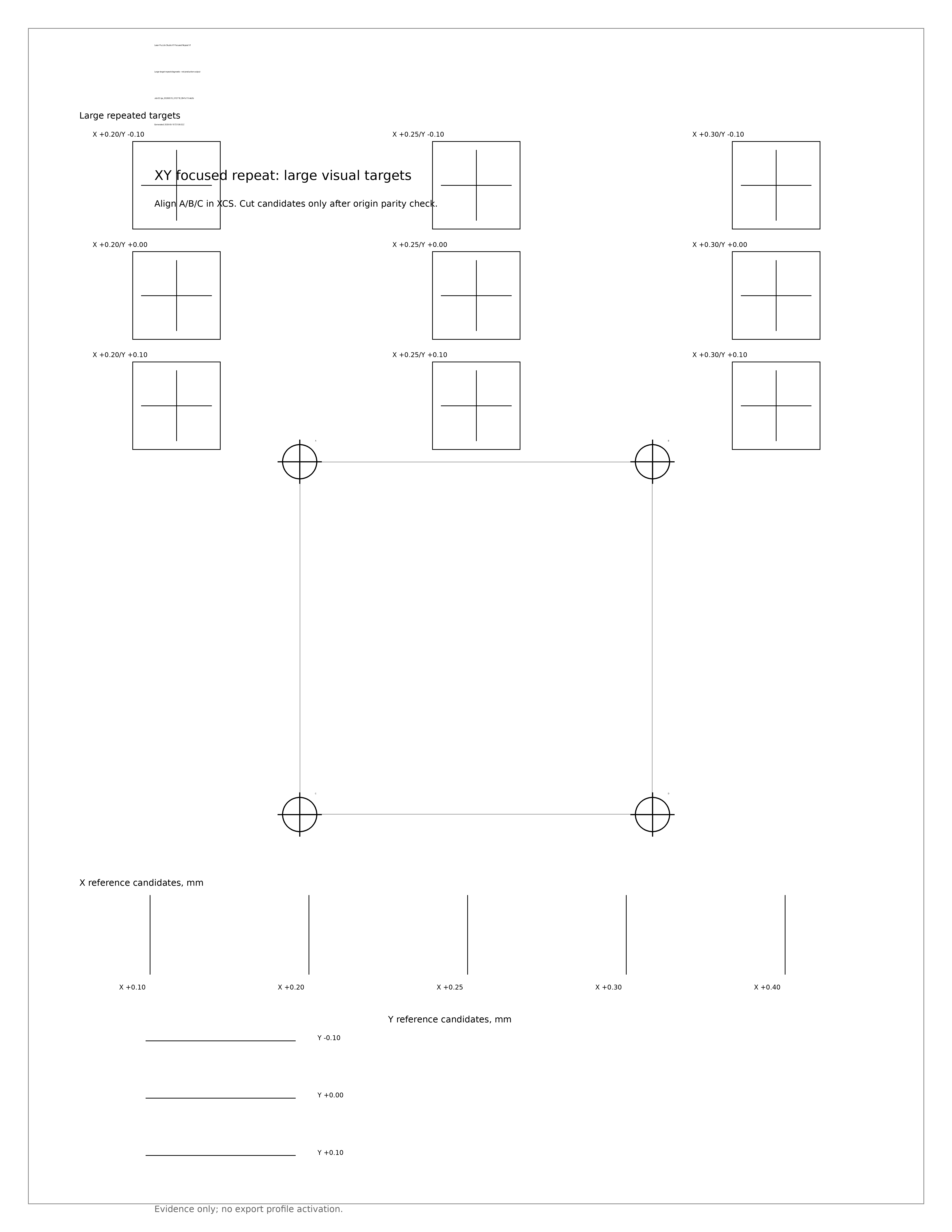

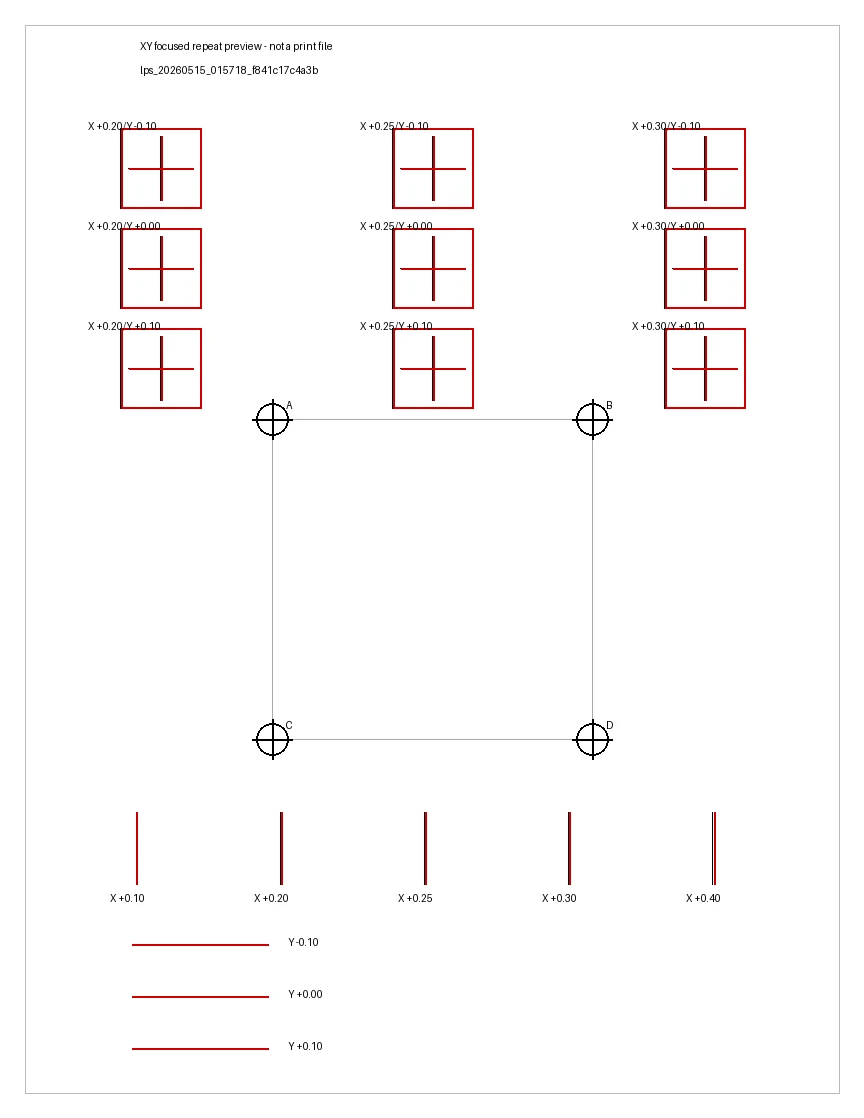

XY Focused Repeat

ready

Large-target repeat test

This sheet is for the current physical calibration refinement. Use the calibration page as the main workflow and record the result there.

Download PDF Download PNG Alignment SVG Cut-Only SVG Validation JSON Record Result

PDF: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-focused-repeat-v1/registration-xy-focused-repeat-v1-letter-600dpi.pdf
Alignment SVG: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-focused-repeat-v1/registration-xy-focused-repeat-v1-alignment.svg
Cut-only SVG: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-focused-repeat-v1/registration-xy-focused-repeat-v1-cut-only.svg
Candidates: 5 X / 3 Y
Large targets: 9 cells
Seed: X +0.25 mm, Y +0.00 mm
Validation: 62 / 62 checks passed
Manual status: pending owner selection

This artifact favors readable repeated targets over dense fractional-mm ladders. It remains diagnostic evidence only.

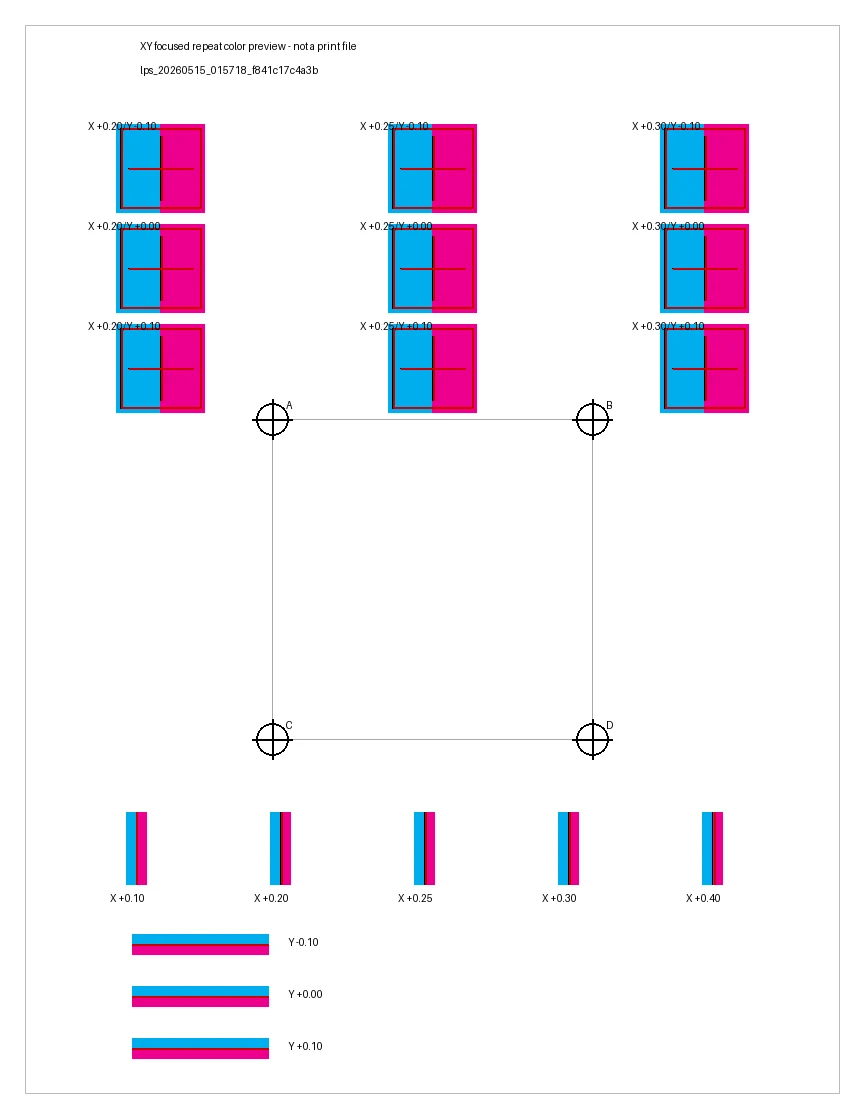

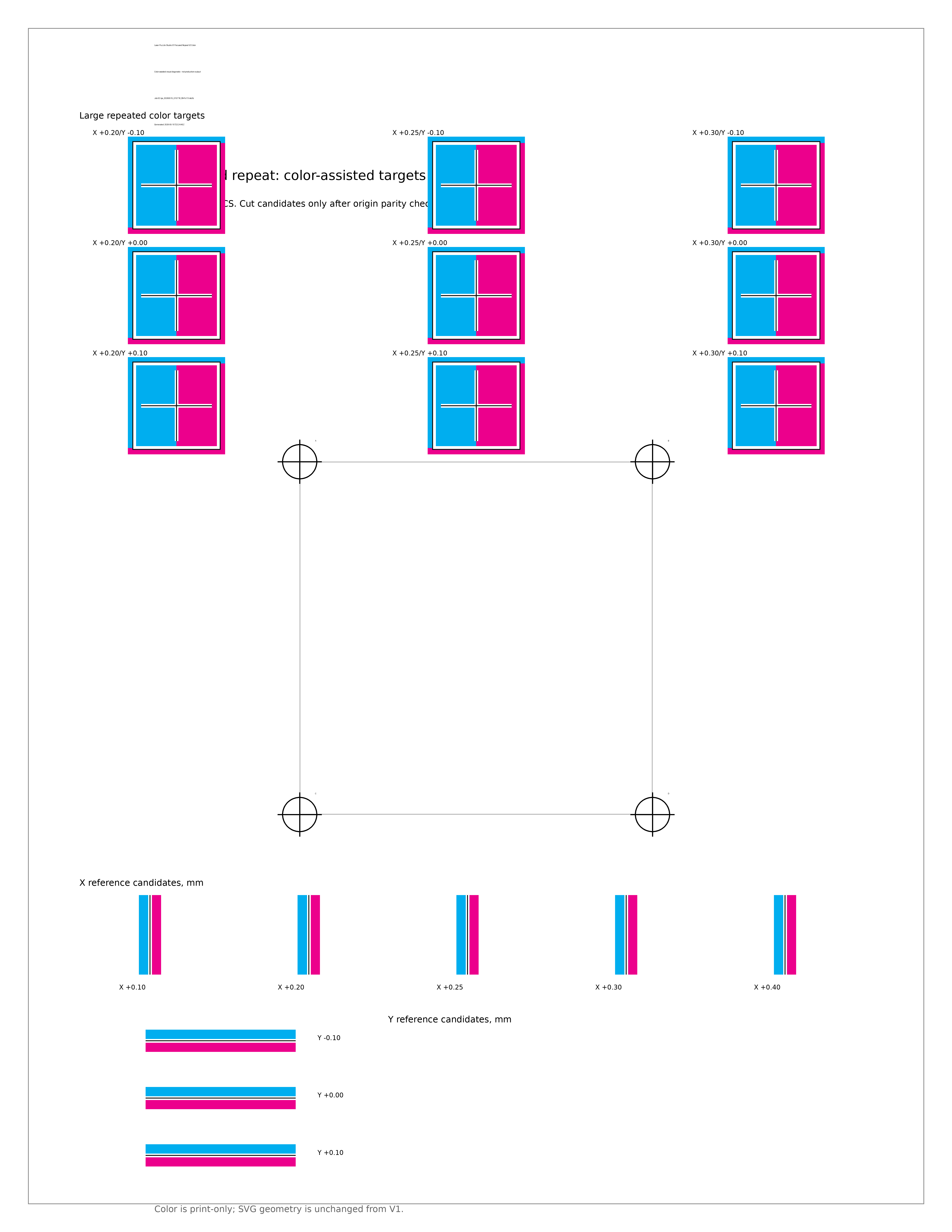

XY Focused Repeat Color

ready

Color-assisted readability test

The printed targets use cyan/magenta contrast to make small offsets easier to see. SVG candidate geometry remains unchanged from the focused-repeat V1 artifact.

Download PDF Download PNG Alignment SVG Cut-Only SVG Validation JSON Record Result

PDF: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-focused-repeat-v2-color/registration-xy-focused-repeat-v2-color-letter-600dpi.pdf
Alignment SVG: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-focused-repeat-v2-color/registration-xy-focused-repeat-v2-color-alignment.svg
Cut-only SVG: jobs/lps_20260515_015718_f841c17c4a3b/registration/xy-focused-repeat-v2-color/registration-xy-focused-repeat-v2-color-cut-only.svg
Visual style: color split band v1
Candidates: 5 X / 3 Y
Large targets: 9 cells
Seed: X +0.25 mm, Y +0.00 mm
Validation: 62 / 62 checks passed

Color is print-only. The red alignment and cut-only SVG vectors remain vector-safe and artwork-free.

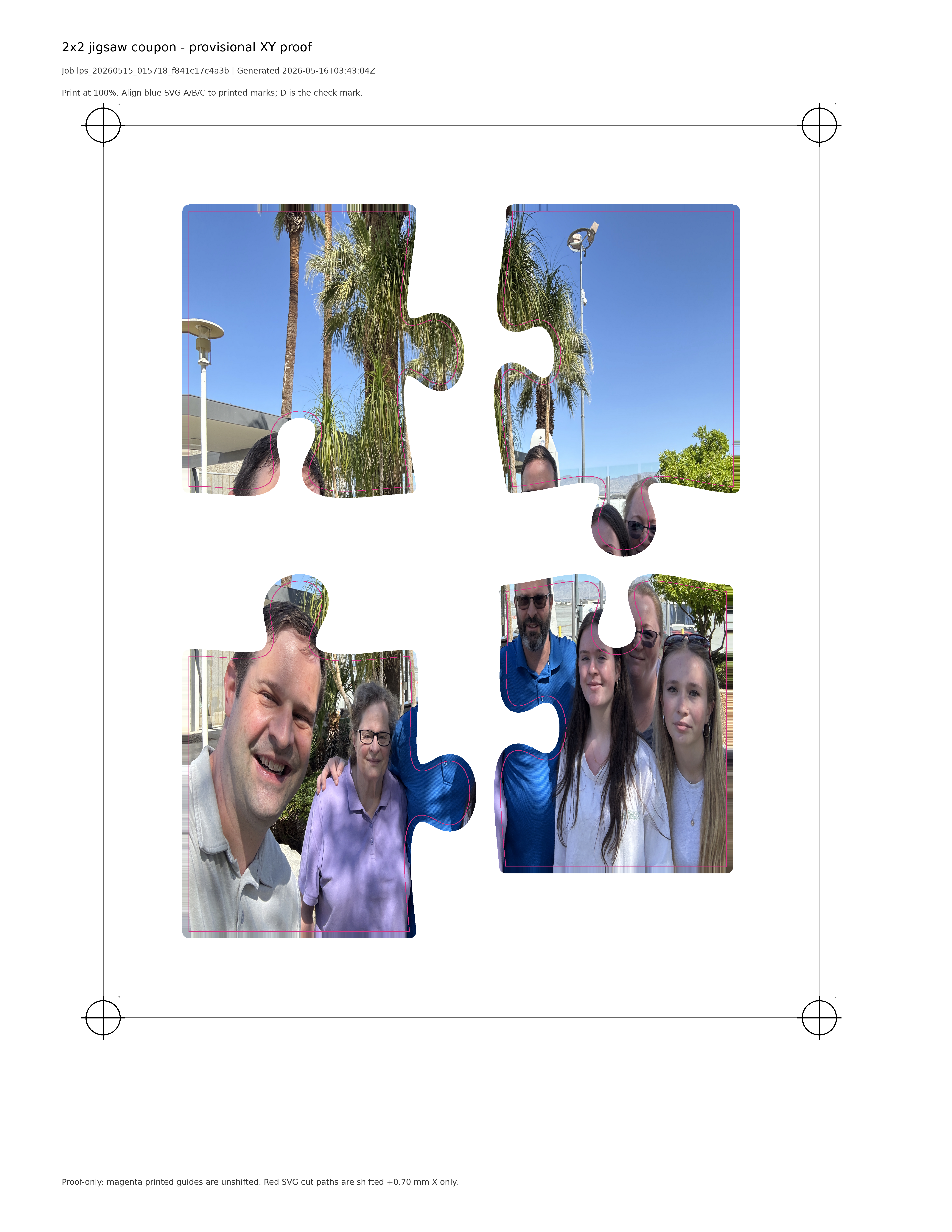

2x2 Jigsaw Coupon

ready

Private proof only

The print artwork and registration marks are unshifted. Only the red SVG cut paths use provisional X +0.70 / Y +0.00 compensation. No active profile or production export was created.

Print PDF Print PNG Alignment SVG Cut-Only SVG Validation JSON

Print PDF: jobs/lps_20260515_015718_f841c17c4a3b/exports/2x2-jigsaw-coupon-v1/print.pdf
Alignment SVG: jobs/lps_20260515_015718_f841c17c4a3b/exports/2x2-jigsaw-coupon-v1/alignment.svg
Cut-only SVG: jobs/lps_20260515_015718_f841c17c4a3b/exports/2x2-jigsaw-coupon-v1/cut-only.svg
Compensation: X 0.70 mm, Y 0.00 mm
Kerf applied: 0.00 mm
Validation: 72 / 72 checks passed

Test this coupon physically before any active calibration profile, kerf compensation, or full puzzle export work.

Repeat V2 2x2 Jigsaw Coupon

ready

Current confirmation proof

This repeat V2 coupon uses candidate X +0.70 / Y -0.10 compensation on the red SVG cut paths only. Earlier coupon artifacts remain unchanged.

Print PDF Print PNG Alignment SVG Cut-Only SVG Validation JSON

Print PDF: jobs/lps_20260515_015718_f841c17c4a3b/exports/2x2-jigsaw-coupon-repeat-v2/print.pdf
Alignment SVG: jobs/lps_20260515_015718_f841c17c4a3b/exports/2x2-jigsaw-coupon-repeat-v2/alignment.svg
Cut-only SVG: jobs/lps_20260515_015718_f841c17c4a3b/exports/2x2-jigsaw-coupon-repeat-v2/cut-only.svg
Compensation: X 0.70 mm, Y -0.10 mm
Source run: calrun_20260516_213903_31b818b27f9a
Validation: 72 / 72 checks passed

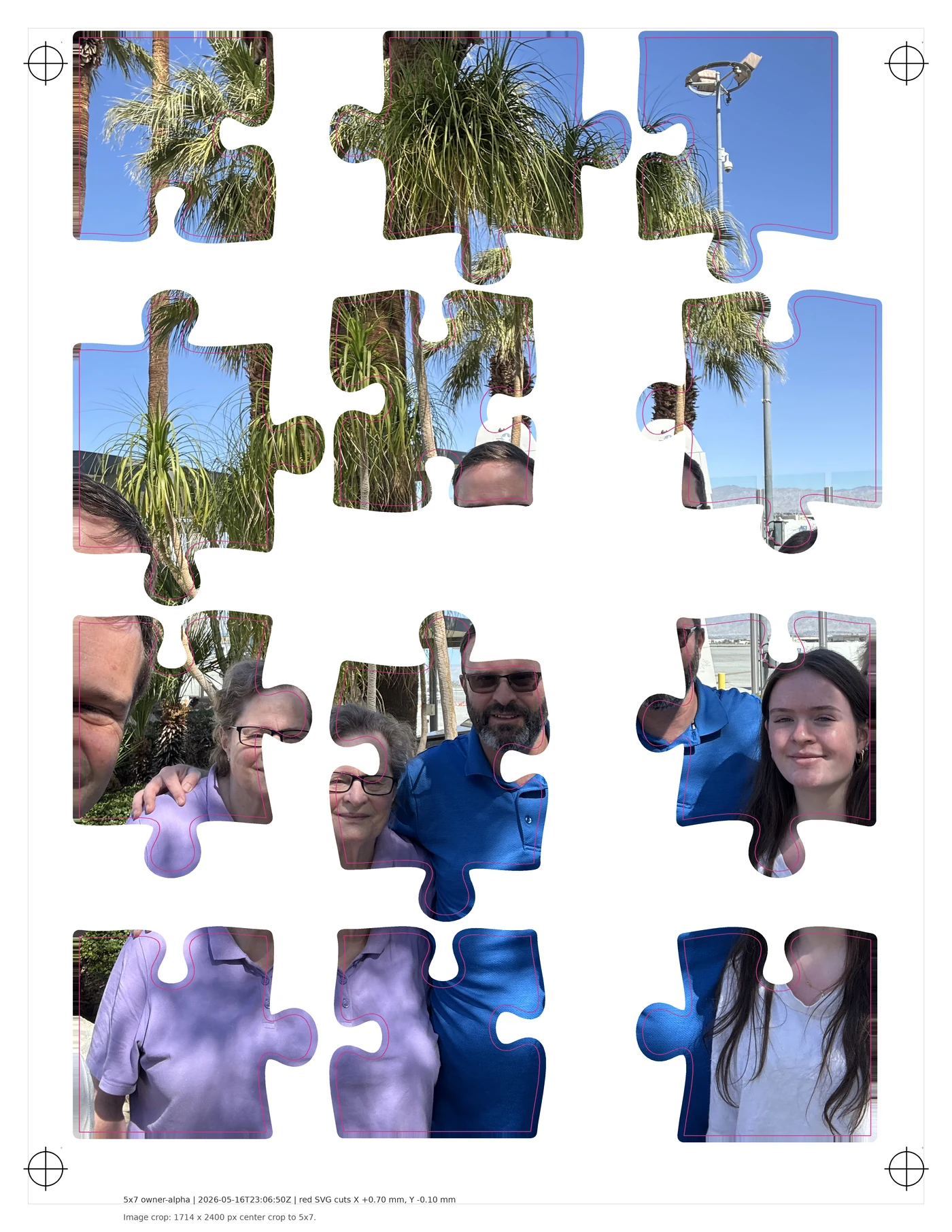

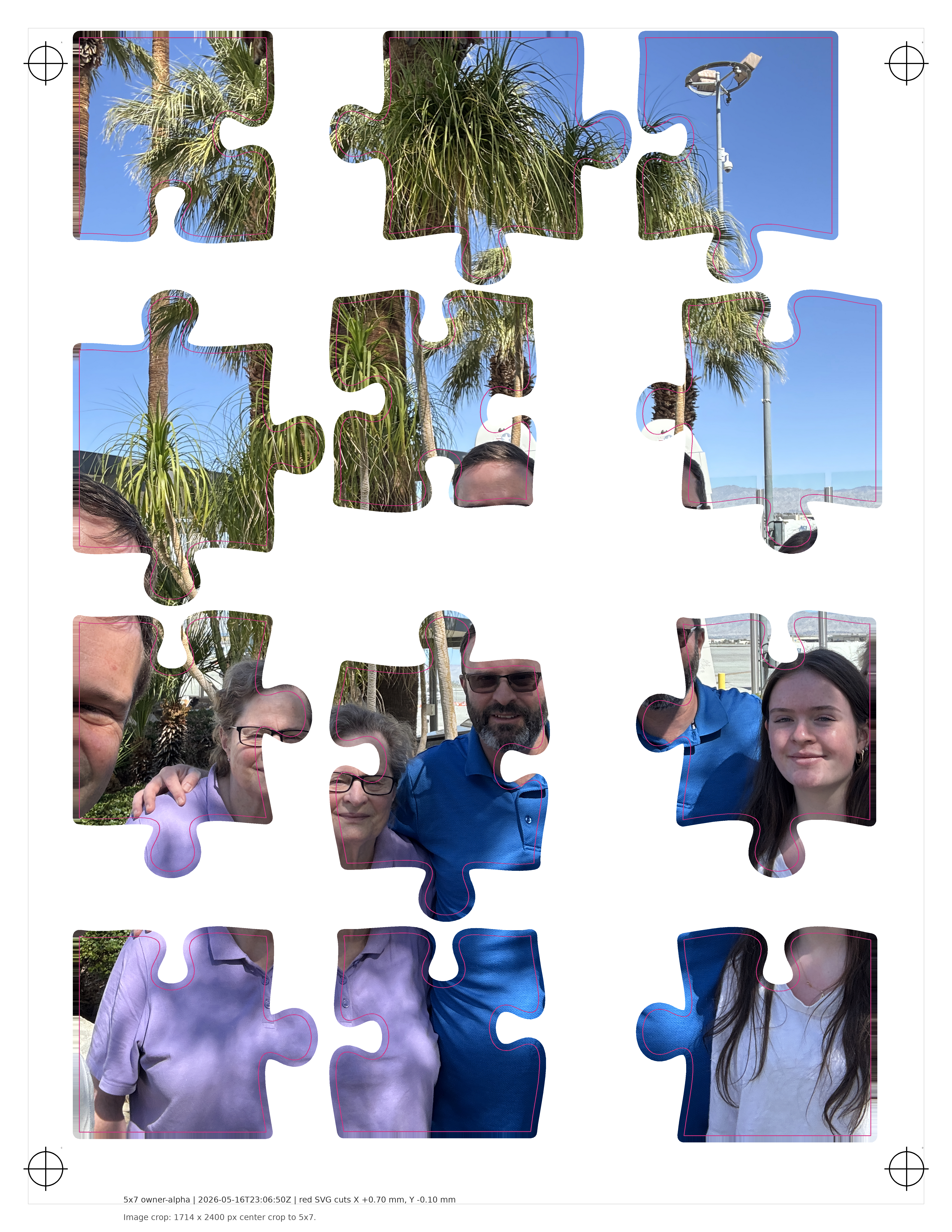

5x7 Owner-Alpha Export

ready

First material-efficient puzzle export

This 5x7, 3 x 4 owner-alpha export uses the active calibration profile on red SVG cut paths only. The print artwork and printed registration marks remain unshifted.

Print PDF Print PNG Alignment SVG Cut-Only SVG Validation JSON

Puzzle: 127.0 x 177.8 mm, 3 x 4
Print PDF: jobs/lps_20260515_015718_f841c17c4a3b/exports/5x7-owner-alpha-v1/print.pdf
Alignment SVG: jobs/lps_20260515_015718_f841c17c4a3b/exports/5x7-owner-alpha-v1/alignment.svg
Cut-only SVG: jobs/lps_20260515_015718_f841c17c4a3b/exports/5x7-owner-alpha-v1/cut-only.svg
Active correction: X 0.70 mm, Y -0.10 mm
Profile: cal_20260516_223213_982682889c87
Validation: 194 / 194 checks passed

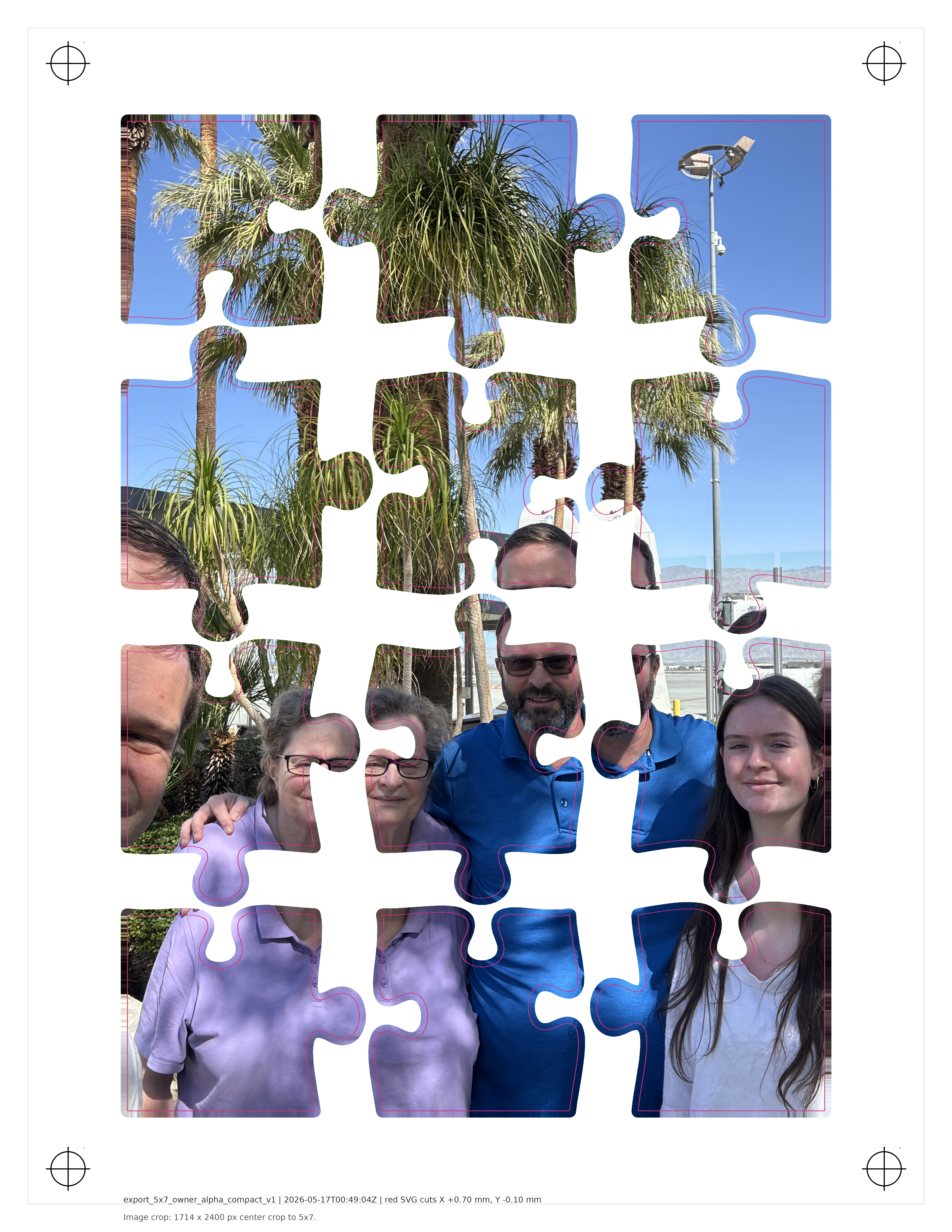

Compact 5x7 Owner-Alpha Export

ready

Compact material-footprint export

This version keeps the assembled puzzle at 5x7 inches but uses exploded assembled-coordinate packing so the separated pieces take less paper and wood.

Print PDF Print PNG Alignment SVG Cut-Only SVG Validation JSON

Puzzle: 127.0 x 177.8 mm, 3 x 4
Footprint: 161.1 x 227.5 mm
Packing: exploded_assembled_grid_v1
Print PDF: jobs/lps_20260515_015718_f841c17c4a3b/exports/5x7-owner-alpha-compact-v1/print.pdf
Alignment SVG: jobs/lps_20260515_015718_f841c17c4a3b/exports/5x7-owner-alpha-compact-v1/alignment.svg
Cut-only SVG: jobs/lps_20260515_015718_f841c17c4a3b/exports/5x7-owner-alpha-compact-v1/cut-only.svg
Active correction: X 0.70 mm, Y -0.10 mm
Registration: compact_local_frame_v1
Validation: 200 / 200 checks passed

5x7 Finished Puzzle - Efficient Print/Cut Layout

ready

Calibrated finished size locked at 5x7 inches

The completed puzzle size is 127.0 x 177.8 mm. V2 snapshots the active calibration setup, offsets red SVG cut paths outward for K0.20, then applies XY correction. Leave XCS kerf offset at 0.

Print PDF Print PNG Alignment SVG Cut-Only SVG Validation JSON

Finished-size efficient 5x7 export preview

Finished puzzle: 127.0 x 177.8 mm, 3 x 4
Active footprint: 159.4 x 224.9 mm
Registration footprint: 173.4 x 238.9 mm
Print/cut bounds: 173.4 x 238.9 mm
Area reduction: 10.7%
Spacing: Cut 2.95 mm, bleed 0.15 mm
Packing: exploded_assembled_grid_efficient_v2_setup_kerf
Active correction: X 0.70 mm, Y -0.10 mm
Kerf compensation: K0.20, outward offset 0.10 mm
Setup snapshot: calsetup_20260517_182621_c54446de4941
Registration: tight_local_frame_v2
Validation: 257 / 257 checks passed

Kerf Fit Coupon

ready

Proof-only kerf candidates

This coupon helps choose material kerf. It does not change the finished-size 5x7 export until a candidate is selected and applied in a later step.

Print PDF Print PNG Alignment SVG Cut-Only SVG Validation JSON

Candidates: 0.15 mm, 0.20 mm, 0.25 mm, 0.30 mm, 0.35 mm, 0.40 mm, 0.50 mm
Cut offsets: 0.075 mm, 0.100 mm, 0.125 mm, 0.150 mm, 0.175 mm, 0.200 mm, 0.250 mm
Square gauges: 3 x 50 mm
Cut paths: 38
Active correction: X 0.70 mm, Y -0.10 mm
Registration: full_coupon_corner_frame_v1
Validation: 19 / 19 checks passed

Historical Repeat V1 2x2 Jigsaw Coupon

preserved

Preserved earlier proof

This repeat V1 coupon used candidate X +0.30 / Y +0.10 compensation. Repeat V2 is the current candidate when available.

Print PDF Print PNG Alignment SVG Cut-Only SVG Validation JSON

Print PDF: jobs/lps_20260515_015718_f841c17c4a3b/exports/2x2-jigsaw-coupon-repeat-v1/print.pdf
Alignment SVG: jobs/lps_20260515_015718_f841c17c4a3b/exports/2x2-jigsaw-coupon-repeat-v1/alignment.svg
Cut-only SVG: jobs/lps_20260515_015718_f841c17c4a3b/exports/2x2-jigsaw-coupon-repeat-v1/cut-only.svg
Compensation: X 0.30 mm, Y 0.10 mm
Kerf applied: 0.00 mm
Validation: 72 / 72 checks passed

Use this only to confirm repeatability before creating an active calibration profile or production export.

Generation Plan

Units: mm
Page: 215.9 x 279.4 mm
Puzzle: 203.2 x 254 mm
Grid: 4 x 5
Spacing: 4 mm
Bleed: 1.5 mm
Image fit: center_crop_v1
Proof: proof_2x2_rect_v1
Jigsaw proof: proof_2x2_tabs_v1
Bleed proof: bleed_path_proof_v1
Print calibration: print_calibration_proof_v1
SVG scale: svg_scale_square_v1
Registration coupon: registration_coupon_v1
Local registration: registration_coupon_local_v2

Geometry Proof

Type: proof_2x2_rect_v1
Pieces: 4
Validation: 36 / 36 checks passed
Preview size: 864 x 1118 px
Geometry SHA-256: f7d73d137a2bda2ee7aa4fe2315799d333771fbd21b054e049408fe73445bf40

Jigsaw Geometry Proof

Type: proof_2x2_tabs_v1
Pieces: 4
Canonical edges: 4
Validation: 91 / 91 checks passed
Flattening: 0.02 mm
Preview size: 864 x 1118 px
Geometry SHA-256: d04f4fab14723b0d56faf1f9c7b17e0428a6a9dd405ac5472b8c7611f4bbe9ff

Bleed Geometry Proof

Type: bleed_path_proof_v1
Pieces: 4
Bleed: 1.5 mm
Spacing reference: bleed envelope
Validation: 46 / 46 checks passed
Offset: round, closed_polygon
Preview size: 864 x 1118 px
Bleed SHA-256: 45b727a831c204f084221b92367715e9a733d25c9b434bb31c7fece9a2642a95

Artifacts

No exports generated

Production print files, production laser SVGs, and manufacturing output are deferred. Calibration proof downloads are available only in the proof panels above.

Notes

Planning-only sheeted finished-puzzle dry run created. It wrote JSON and WebP previews only. Final print PDFs, alignment SVGs, cut SVGs, ZIP packets, Redis jobs, public downloads, and calibration changes remain deferred.
